Sterilizer

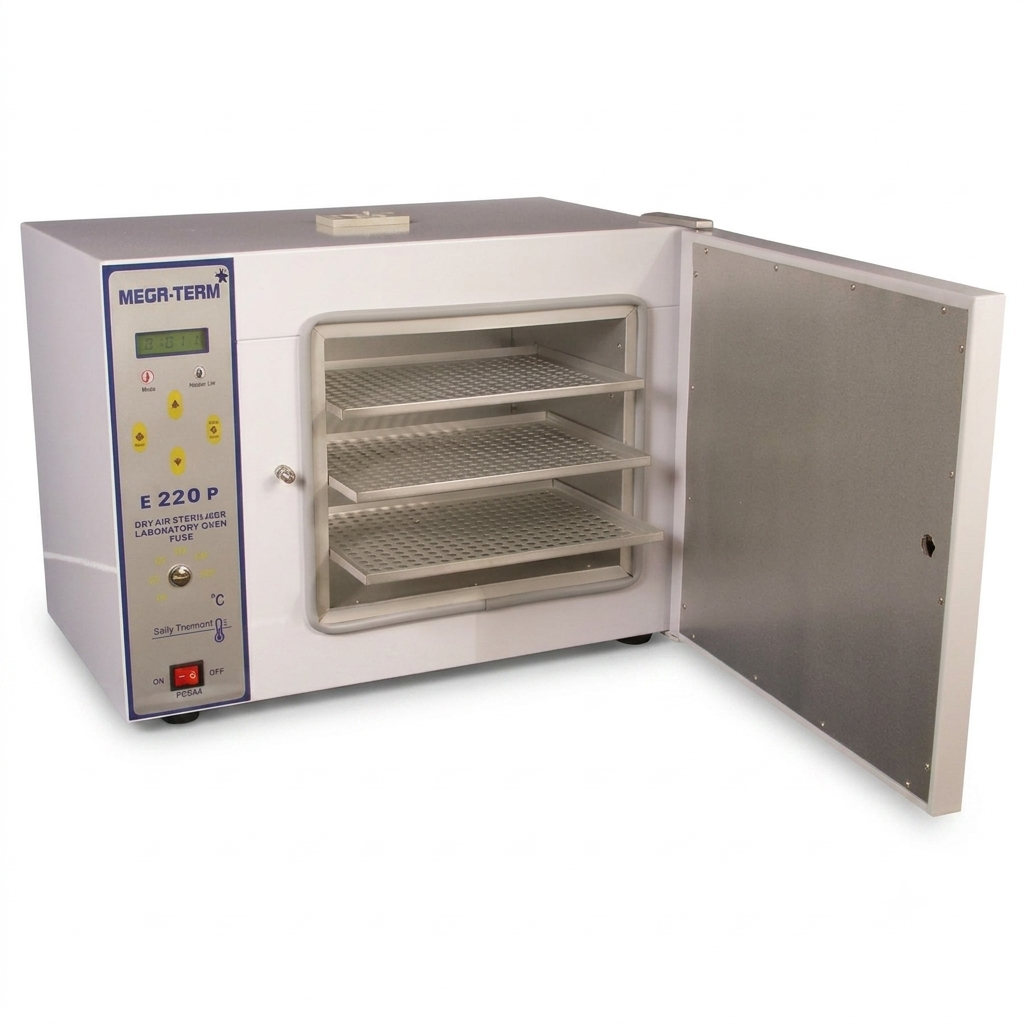

MegaTerm Dry Air Sterilizer
• 16 Liters - Thermostat: 20°C - 250°C - Temperature Accuracy: +/- 5°C - Heating Element: 700 W - Internal Volume: 16 Liters - Internal Dimensions: Height x Width x Depth 300 x 250 x 220 mm - External Dimensions: Height x Width x Depth 540 x 350 x 345 mm • 22 Liters - Thermostat: 20°C - 200°C - Temperature Accuracy: +/- 2°C - Heating Element: 650 W - Internal Volume: 22 Liters - Internal Dimensions: Height x Width x Depth 270 x 330 x 250 mm - External Dimensions: Height x Width x Depth 430 x 610 x 390 mm • 36 Liters - Thermostat: 50°C - 300°C - Temperature Accuracy: +/- 7°C - Heating Element: 1000 W - Internal Volume: 36 Liters - Internal Dimensions: Height x Width x Depth 300 x 400 x 300 mm - External Dimensions: Height x Width x Depth 440 x 660 x 390 mm

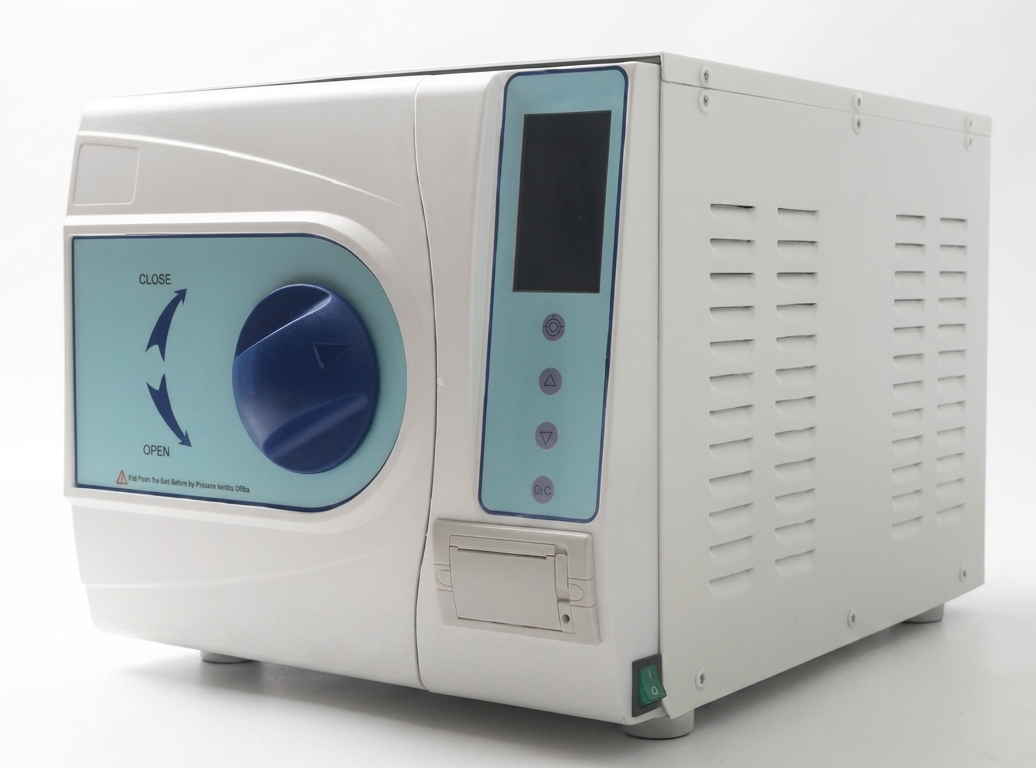

HTS-23D Vory Autoclave
• Nominal Voltage: AC 220V~240V, 50Hz • Nominal Power: VORY-23B: 2300VA VORY-18B/12B: 1800VA • Fuse: ~250V T10AL • Operating Temperature: 0～55℃ • Weight: 4000 N/m2 • Noise: < 70db • Maximum Plate Capacity: 1000g • Water Drainage Frequency: Once a day, drain the water when you see “water2” as “FULL” on the display. • Maximum Load Test Time: 90 minutes. • Maximum thermal radiation energy under 20℃~26℃ conditions: <2000J. Sterilization Chamber: - Material: Stainless steel (medical grade) - Max. Operating Pressure: 300KPa - Min. Working Pressure: -90KPa - Max. Temperature: 145 ℃ - Hopper volume: 23L: 245mm X450MM 18L: 245mm X350MM 12L: 200mm X360MM - Loading size: 12L: Model(GXL)170X294 18L: Model(GXL)225X294 23L: Model(GXL)225X390 - Max. Loading capacity: 12L (4kg/cm2) 18L (5kg/cm2) 23L (6kg/cm2) - Operating Pressure/Temperature: 90～130KPa/121℃~122℃; 200～230KPa/134℃~135℃ - Water volume per cycle: 0.16 L (min) 0.3 L (max) - Sterilizer steam safety valve: Safety relief pressure: 240 kPa - Max. Operating temperature: 160 ℃ • Water tank - Distilled water tank volume: 23/18/12 L (3 L)

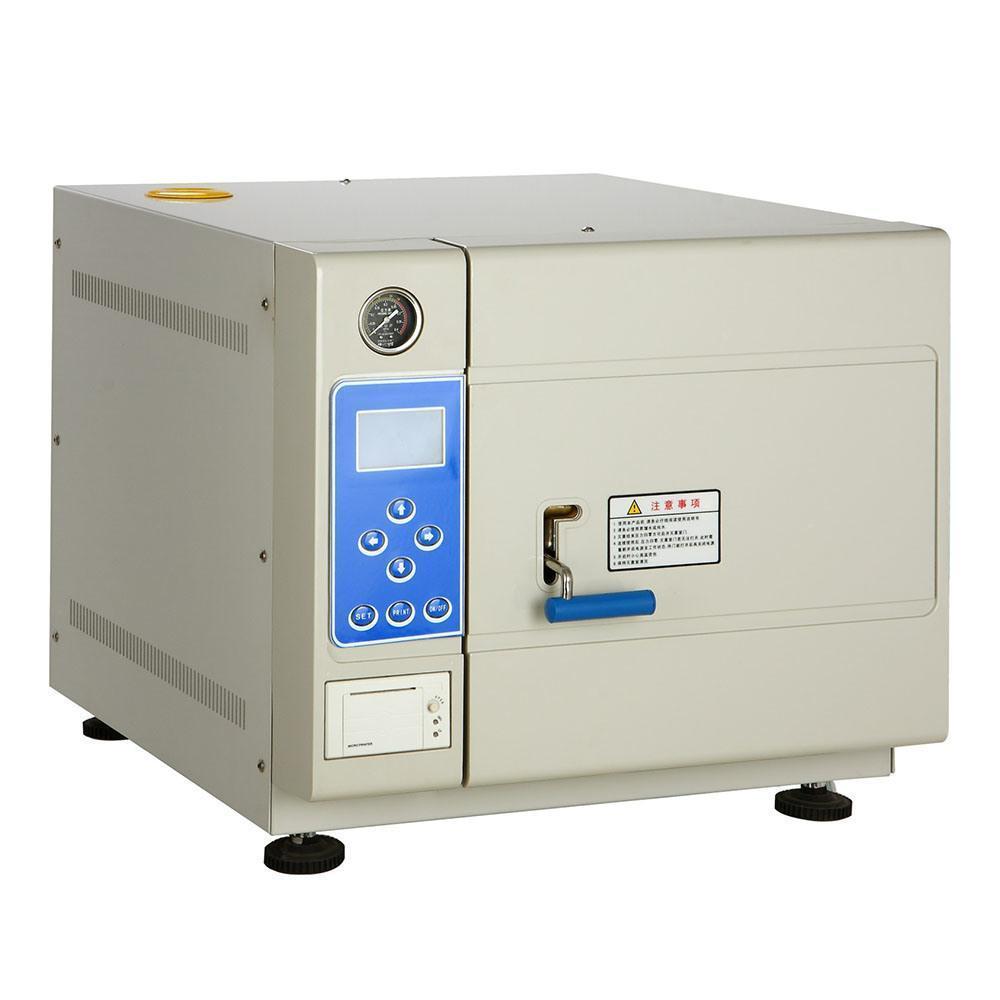

HTS-50D / HTS-35D Autoclave
• The sterilization process is automatically controlled; no supervision is required, and correct operation is essential. • Pulsed vacuum technology is available in 3 or more cycles, suitable for packaged or unpackaged products and hollow equipment. • Drying function is available. • Built-in printer records the entire sterilization process. • Bowie & Dick test function for steam penetration testing. • Self-test fault indicator for easy maintenance. • Safety features and safety lock: Steam cannot enter the chamber, and the unit will alarm if the door is not closed. The door cannot be opened when the internal pressure exceeds 0.027 MPa. • Safety features and safety lock TECHNICAL SPECIFICATIONS - Internal volume: 35 liters / 50 liters - Maximum operating temperature: 134°C ± 1°C - Maximum operating pressure: 0.22 MPa - Set sterilization temperature range: 55°C ~ 134°C - Set timer range: 1 ~ 99 minutes - Set drying time range: 1 ~ 99 minutes - Vacuum cleaner limit: -0.08 MPa - Average temperature: ≤2°C - Power supply: AC220V / 50Hz - Dimensions: 730 × 550 × 510 mm / 770 × 600 × 540 mm - Transport dimensions: 810 × 680 × 650 mm / 880 × 730 × 700 mm - Gross-Net Weight: 90-73 kg / 112-93 kg

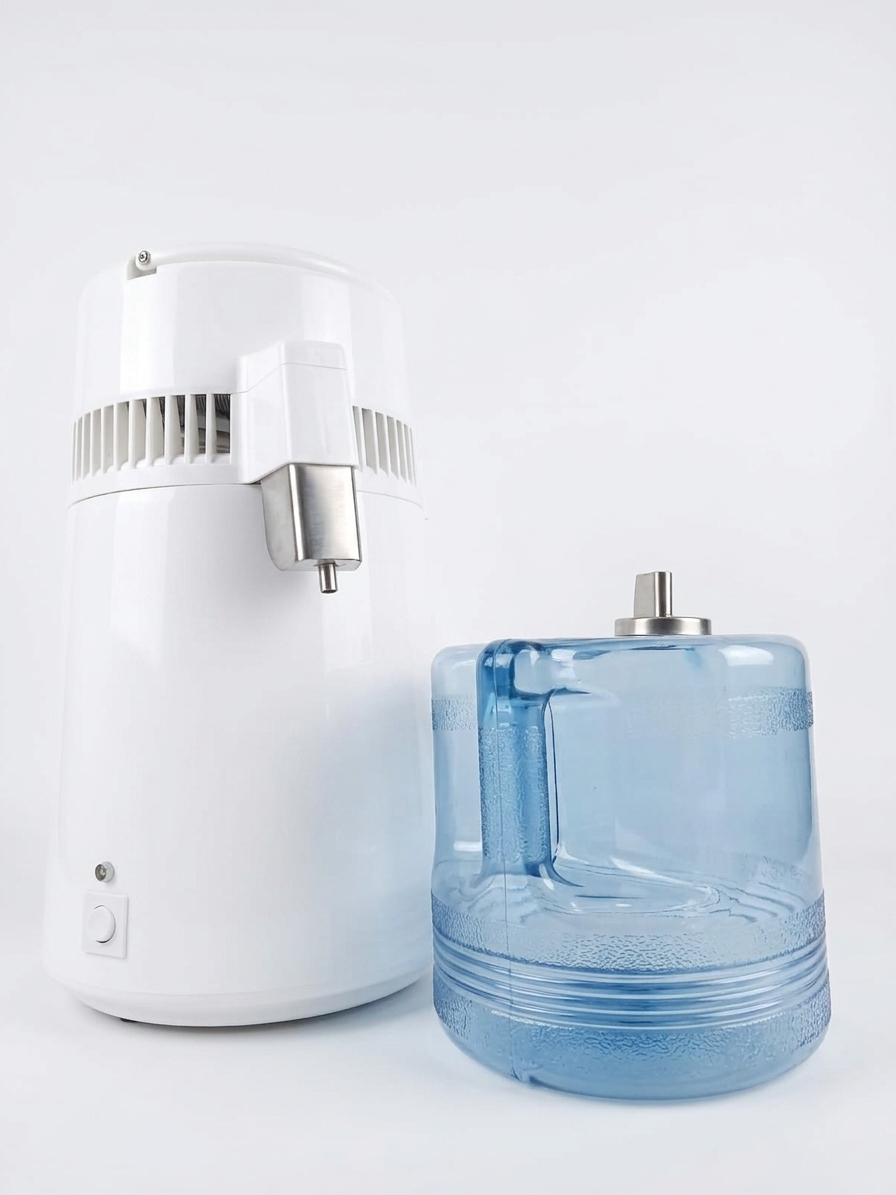

Distilled Water Device
• Easy to use and practical design, making it convenient to use anywhere. • Durable construction and made with long-lasting and reliable materials. • Designed with environmental friendliness and water resource conservation in mind. • 3 liters of pure water in less than 5 hours • Perfect for supplying water to an autoclave • Droppy-S automatically shuts off at the end of the cleaning process • 4 liter jug included. • Dimensions: Ø 23 cm H. 36 cm • Weight: 3.5 kg
