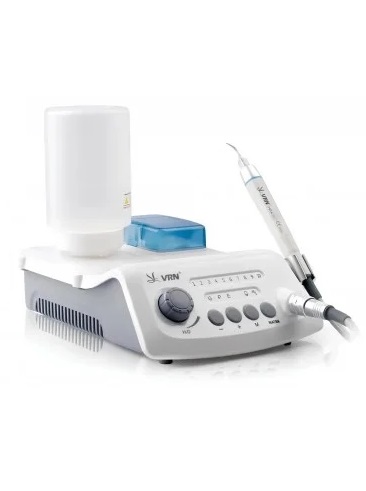

VRN A-8 Cavitron
• Easy to use with 2 water supply systems; • Hydraulic steering is made of antibacterial materials. Clinical fluids such as hydrogen peroxide, chlorhexidine, sodium hypochlorite can be filled into the automatic water supply system, which can significantly improve the performance of periodontal treatment and root canal irrigation. • The handpiece can be autoclaved under 135℃ high temperature and 0.22MPa high pressure. • Automatic frequency tracking system ensures the best working condition, performance is much more stable. • Built-in PC chip with intelligent power control makes treatment more comfortable. • Advanced wireless foot pedal controls the main unit remotely, and a wired switch can also be selected according to user needs. • High brightness LED light increases clinical efficiency; a normal removable handpiece can also be attached to the main unit. Operating conditions: - Temperature: 5°C ~ 40°C - Relative humidity: ≤80% - Atmospheric pressure: 75 kPa ~ 106 kPa - Power supply: • For AC adapter: 100-240Vac, 50-60Hz, 1.2A Max. • Output: 30Vdc, 1.3A • Main unit: 30Vdc, 1.3A - Wireless control foot pedal battery: 1.5V×2 - Receiving (signal) sensitivity: -114dB - Tip primary vibration deflection (amplitude): • Minimum, 1 μm, Deflection -50% • Maximum, 100 μm, Deflection +50% - Half-deflection output: • Minimum, 0.1 N, Deflection -50% • Maximum, 2 N, Deflection +50% - Tip vibration frequency: 25 - 31 kHz - Input power: 30 VA - 48 VA - Ultrasonic output power: 3 W - 20 W - Fuse: 125V 1.5A - Water pressure: 0.1bar ~ 5bar (0.01MPa ~ 0.5MPa) - Main unit weight: 0.75kg - Adapter weight: 0.25kg - Dimensions: 230mm x 155mm x 56mm - Operating mode: Continuous operation - Type of protection against electric shock: Class II equipment - Degree of protection against electric shock: Type BF applied part - Degree of protection against harmful water ingress: Standard equipment (IPX4), - Degree of protection against water (used in wireless control foot pedal): (IPX6) - Application in the presence of a flammable anesthetic mixture with air or oxygen or nitrous oxide (laughing gas) - Safety Rating: The equipment is not suitable for use in the presence of a flammable anesthetic mixture with air or oxygen or nitrous oxide.
Brand
VRN
