Surgical Drill

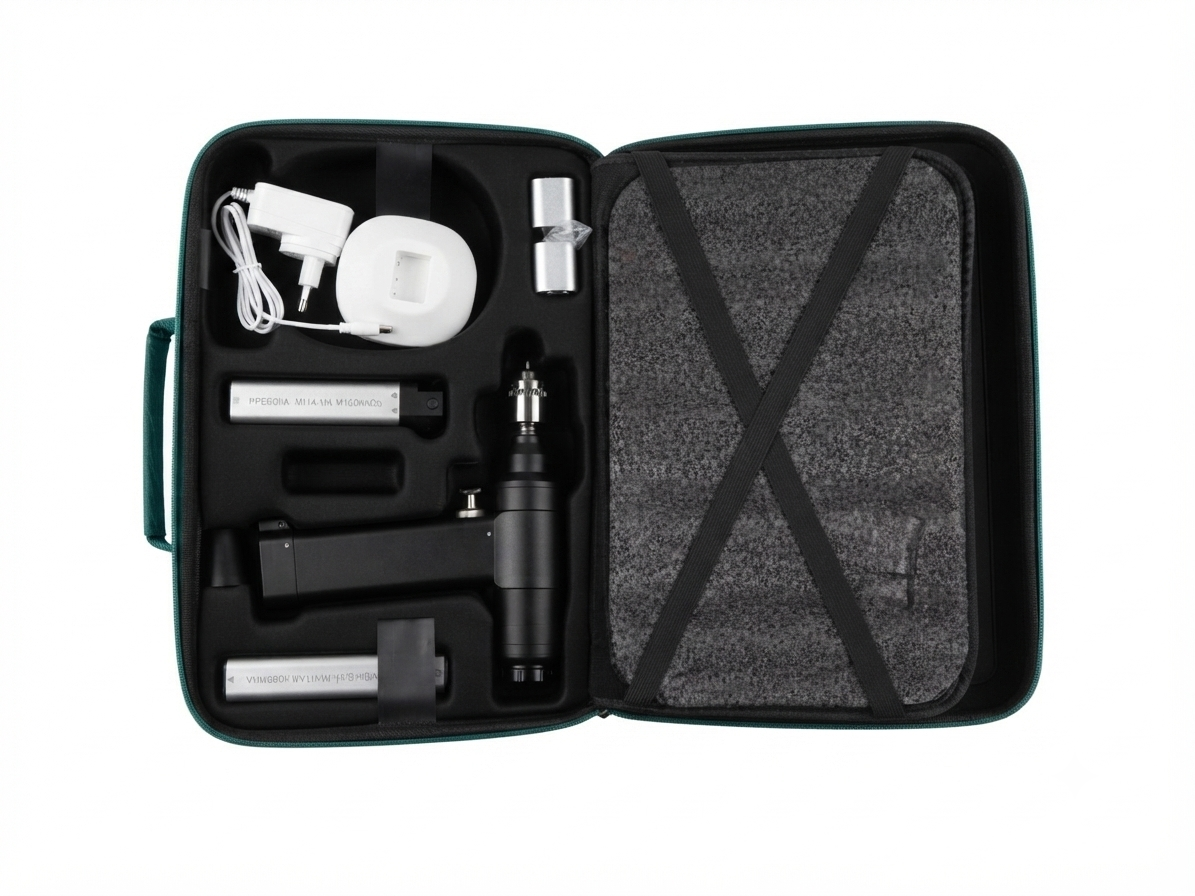

MND Surgical Drill
• High-torque hip joint drill for hip and joint surgeries, features high coaxiality. • This tool is battery operated. • Its main components are made of high-strength biomedical stainless steel. • A high-torque quick-connect option is available; tool connection is very easy and fast, and it has higher stability, light weight, and low noise. • Scientific balancing techniques reduce vibration and improve hand tool control, providing the surgeon with a comfortable operation. • Large torsional moment for more powerful polishing. • Sterilization temperature is 135℃ • Low speed, high torque • Optional speed control • Higher torque at low speed TECHNICAL SPECIFICATIONS - Operating Voltage 14.4V - Output Power ≥ 20W - Unit Temperature Rise ≤ 25°C - Input Voltage AC 220V, 50Hz - Output Power 14.4V, 900mA - Input Power 30VA - Voltage 14.4V - Charging Time Approximately Three Hours - Speed 300 rpm - Diameter deviation ≤ 0.5mm - Noise ≤ 63dB - Drill chuck diameter 0.6-8mm - Material Stainless steel - Torque 33000gcm

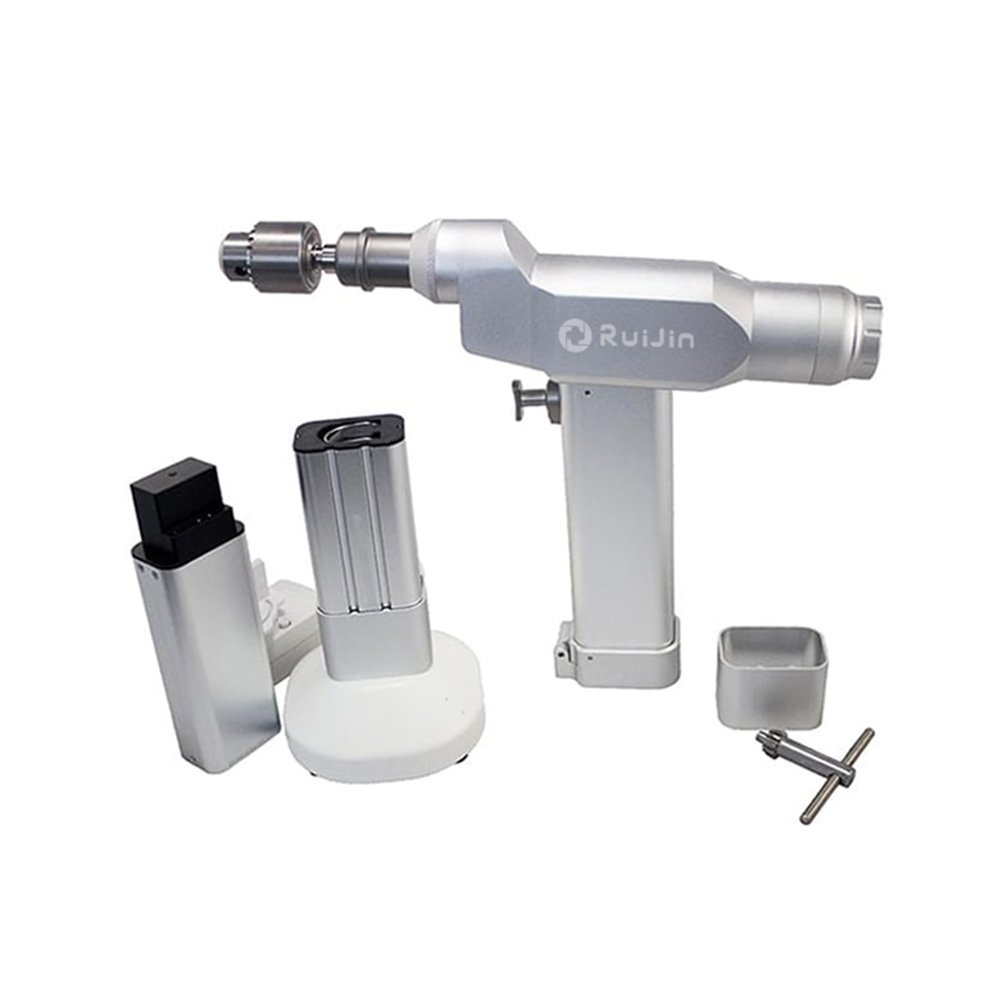

MND Surgical Cannula Type Drill
• Made from high-quality materials, lightweight and portable cannula drill • Features low noise and vibration, quick insertion, variable speed, convenient and reliable performance. • Used in trauma operations. • Has a 4.0 mm recessed structure that can accommodate all brands of needles. • Can be sterilized in an autoclave up to 135°C. • Semi-gloss surface treatment technology provides the operator with a more comfortable experience. • Multi-purpose interface facilitates clinical use. TECHNICAL SPECIFICATIONS - Operating Voltage: 14.4V - Output Power: More than 20W - Unit Temperature Rise: More than 25 degrees Celsius - Charger • Input Voltage: AC 220V, 50Hz • Output Power: 14.4V, 900mA • Input Power: 30VA - Battery • Voltage: 14.4V • Charging Time: Approximately Three Hours - Axial deviation of concentricity is within 0.05 mm - Rotation speed: 600 rpm - Rotation torque: 3.5 N/m - 4.0 mm recess for all brands of needles to pass through.

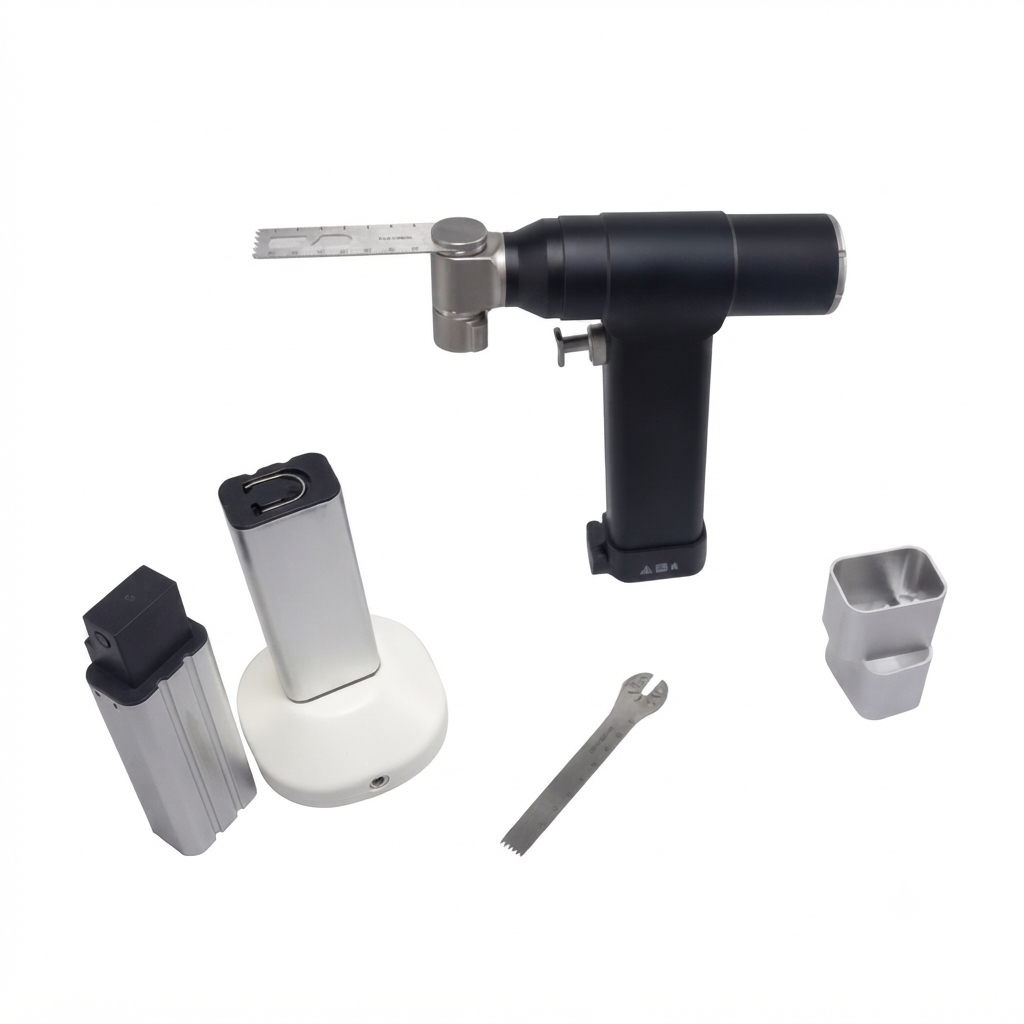

MND Bone Cutter
• More power, low noise, minimal vibration • Minimizes risk during surgery • Variable speed and lightweight for greater accuracy • Sterilization temperature is below 135 degrees Celsius. Exceeding 135 degrees Celsius will damage the motor. • The saw blade and drill bit should be cleaned with a cleaner and kept dry after operation. • The battery area must be dry after sterilization. • The battery cannot be disinfected. TECHNICAL SPECIFICATIONS - Material: Stainless steel - Speed: 1,000 rpm - 1,800 rpm - Voltage: 220 V/50 Hz - Operating voltage: 14.4V - Net weight: 1700g - Charging time: Approximately 3 hours - Dimensions: 38 * 29 * 12 (cm)
