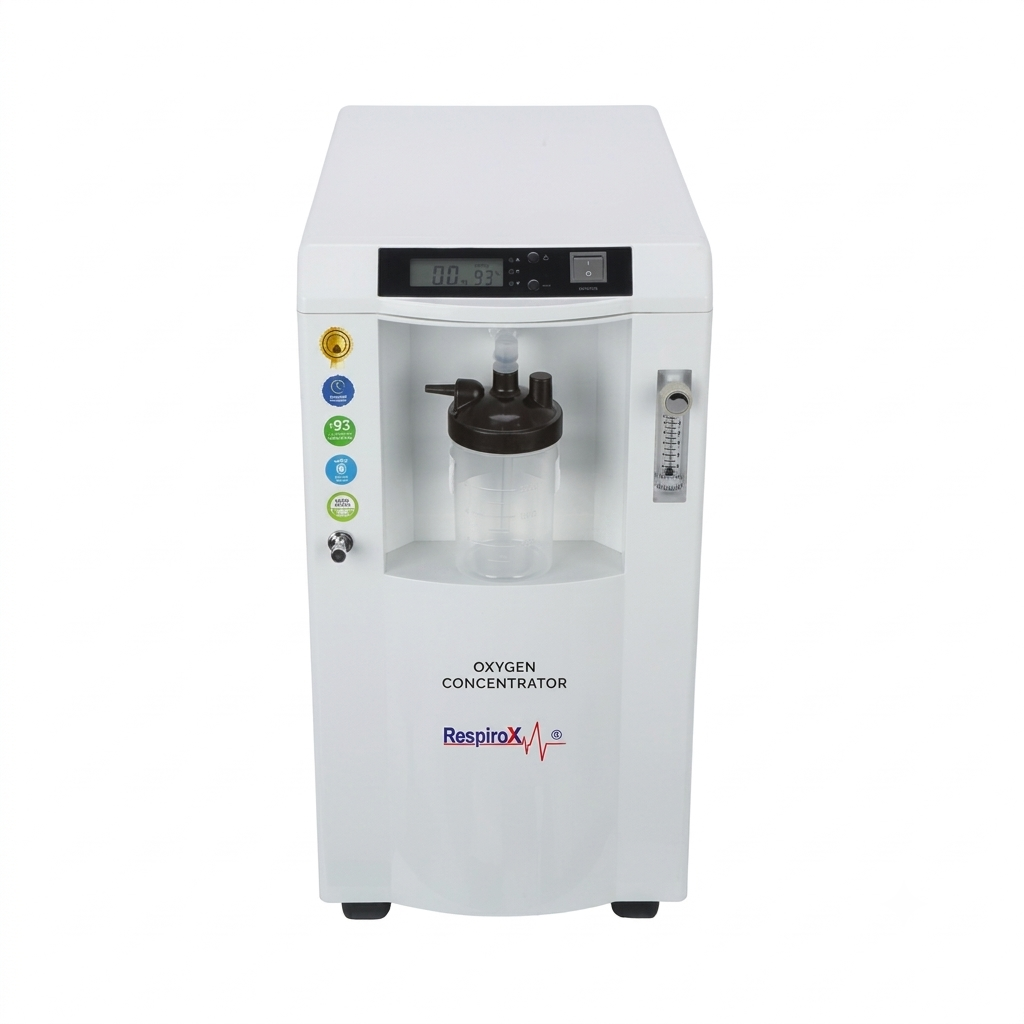

SZ-5AW Concentrator
• Full plastic outer shell, robust and reliable.
• Timer function, displays total operating hours on the display screen. • Timer shut-off function for ease of use. • Safety valve to prevent overshoots to help ensure safety.
• Power loss alarm function, pressure and cycle error alarm function, compressor failure alarm function.
• Low oxygen level alarm function.
• Heat-protected compressor to ensure the safety of the compressor and condenser.
• You can store manual and nasal oxygen cannulas and other accessories in the condenser storage box.
TECHNICAL SPECIFICATIONS
- Flow Rate: 1~5 L/min
- Oxygen Concentration: 87% ~ 95.5%
- Maximum Output Pressure: 20kPa~50kPa (2.9psi~7.25psi)
- Pressure Reduction Mechanism, Operational within the following ranges: 250kPa±25kPa (36.25psi±3.63psi)
- Altitude: Operates with 93% efficiency up to 1828 meters (6000 ft) above sea level and 87% efficiency from 1828 meters (6000 ft) to 4000 meters (13129 ft) without degradation in concentration levels. - Sound Level: <55dB (A)
- Power Supply: AC220V±10% 50Hz
- Input Power: <400VA
- Dimensions: H55.6cm (21.9")xW28.5cm (11.23")xD47cm (18.52")
- Weight: 24kg (53 lbs)
- Minimum operating time: 30 minutes
- Electrical classification: Class II equipment, Type B applicable part
- Operating system: Continuous operation.
- Keep away from areas containing flammable and explosive gases.
