Infusion Pump and Infusıon Warmer

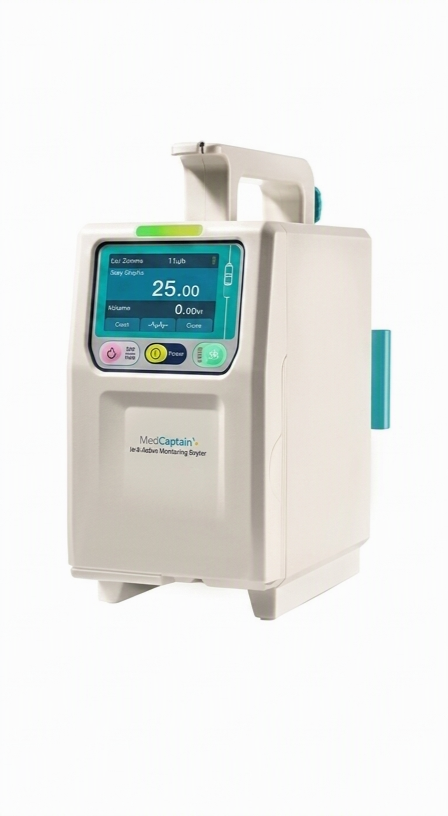

SYS-6010 Infusion Pump
• Smarter Touchscreen • Electric pump cap and free-flow prevention clamp • Voice prompts • Safer: Unique dual alarm indicators provide double safety • More Accurate: Patented drive system with 16 sub-division motor drive technology • Power supply: AC 100-240 V Built-in battery (5 hours of continuous operation) • Applicable infusion sets: All disposable infusion sets compliant with ISO 8536-4 • Infusion mode: Drip mode, Time mode, Weight mode, and Multi-speed mode • Infusion rate range: 0.1-1200.0 mL/hour, minimum increment: 0.1 mL/hour • Infusion accuracy: ±5% • Occlusion level: 11 levels supported.
Infusion Pump with Heater
• Bright color and large LCD Touch Screen • Small size, easy to carry and economical to transport • Compatible with infusion tubes any standard • Three infusion modes for your selection • KVO & Bolus function • Intelligent pressure detection & occlusion detection(adjustable on 3 levels) • Audiovisual alarms,shockproof and waterproof • Autosave previous infusion record • Heating function • Real time display

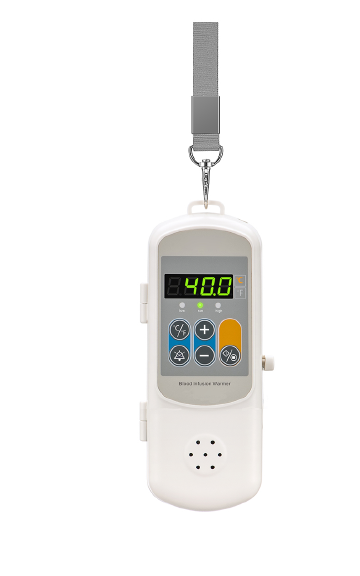

Blood and Infusion Warmer
• Compact design, user-friendly • Fast heating to set temperature in 2 minutes • Long, medium, short heating channel • Various temperature control protection technologies • °C and °F unit conversion TECHNICAL SPECIFICATIONS - Temperature Setting ℃: 35℃-42℃ - Temperature Accuracy ℃: ±1℃ - Increment ℃: 0.1℃ - Optional unit ℃/°F - Heating time ≤2 min - Overheating Protection 46℃ - Alarms: Overheating, low temperature, system error, door open, alarm triggered. • LED Display - Power Supply Input: 100-240V (AC Power), - 50/60HZ, 0.3-0.7A Output: 12V (DC Power) 2.5A - Power Consumption: 85VA - Operating Environment Temperature: +5℃-+30℃ - Relative Humidity: 20%-80% - Atmospheric Pressure: 76.0kPa-106.0kPa - Transport and Storage Environment Temperature: -20℃-+55℃ - Relative Humidity: 10%-93% - Atmospheric Pressure: 50.0kPa-106.0kPa - Liquid Ingress Protection Rating: IPX1 - Dimensions: 180*70*35mm - Weight (Excluding Knob): 0.2kg With Knob: 0.4 kg

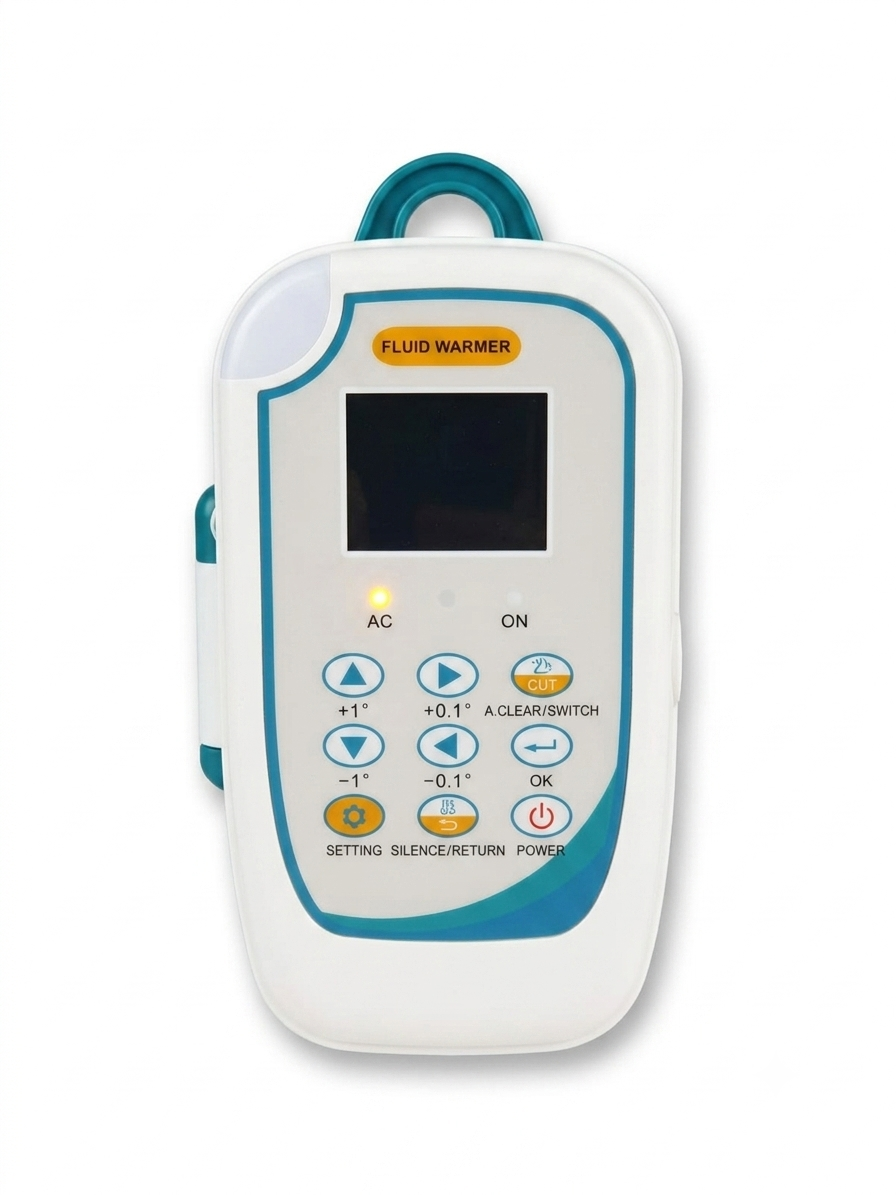

Dual Channel Infusion Warmer
• Compact and lightweight • Color LCD display with detailed information • Double-slot heating for two brewing sets • Operation with optional drip sensor • Fast heating, reaching set temperature in 3-5 minutes • High and low temperature alarms available • Automatically cuts off power supply when liquid overheats • Two flexible installation options: with hanger or with hanger bracket (clamp) • The hanger bracket (clamp) can be concealed, saving space TECHNICAL SPECIFICATIONS - Tube size: 3~4.5 mm - Heating range: 30 ℃ ~ 42 ℃, in 1 ℃ or 0.1 ℃ increments - Accuracy: Less than 1 ℃ - Classification: Class I / Type B - Power: AC 100-240V, 50Hz/60Hz - Net weight: 550g - Package dimensions: 22.0*19.0*12.1 cm
